Products Description
BLT310 is a highly cost-effective intelligent laser cutting head developed by BOCI and Friendness for small and medium power. It is not only small in size and light in weight, but also integrates multiple sets of intelligent sensors inside the cutting head to provide real-time closed-loop intelligent monitoring, rapid diagnosis and timely warning.
BLT310 intelligent laser cutting head
BLT310 intelligent laser cutting head
Products Details

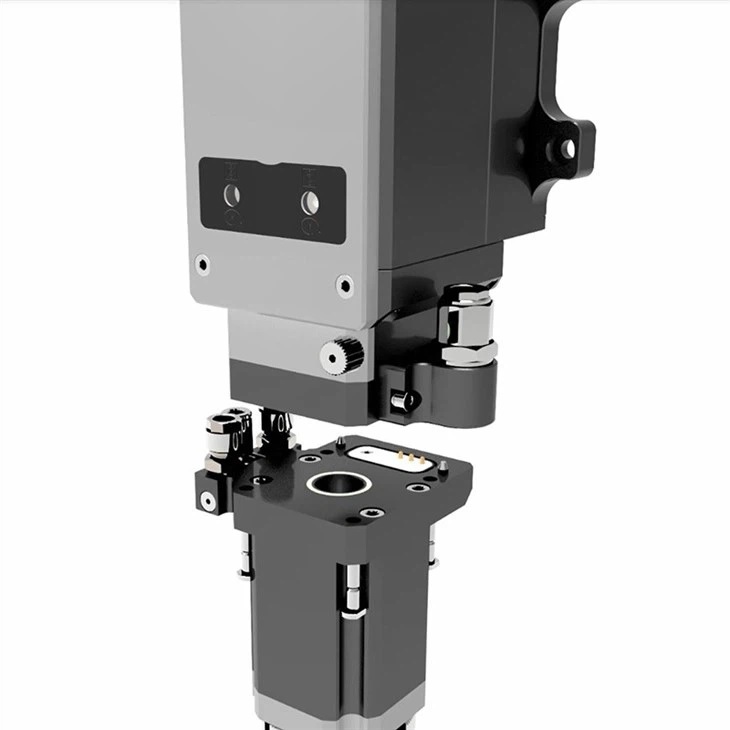

Laser cutting head anti-collision design

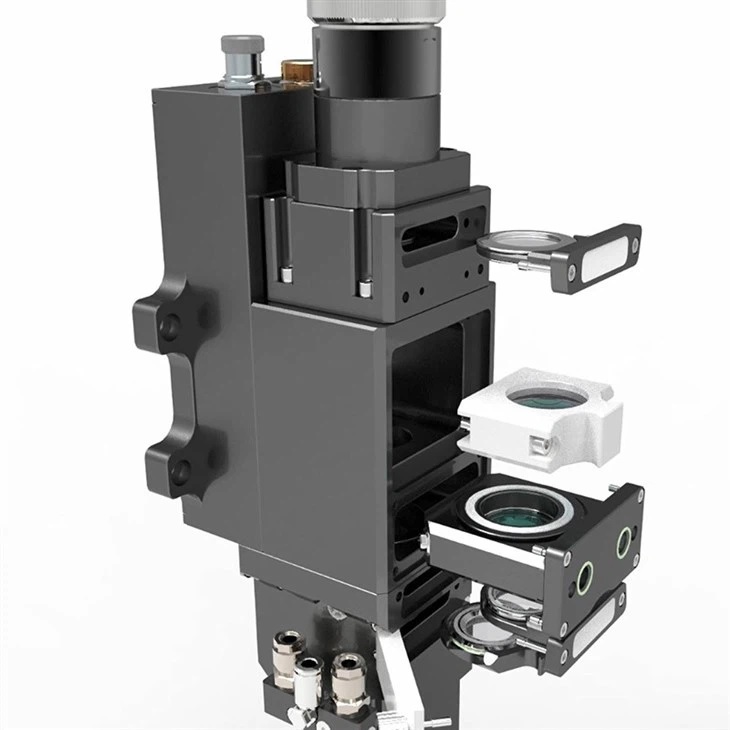

Lens combination drawer design

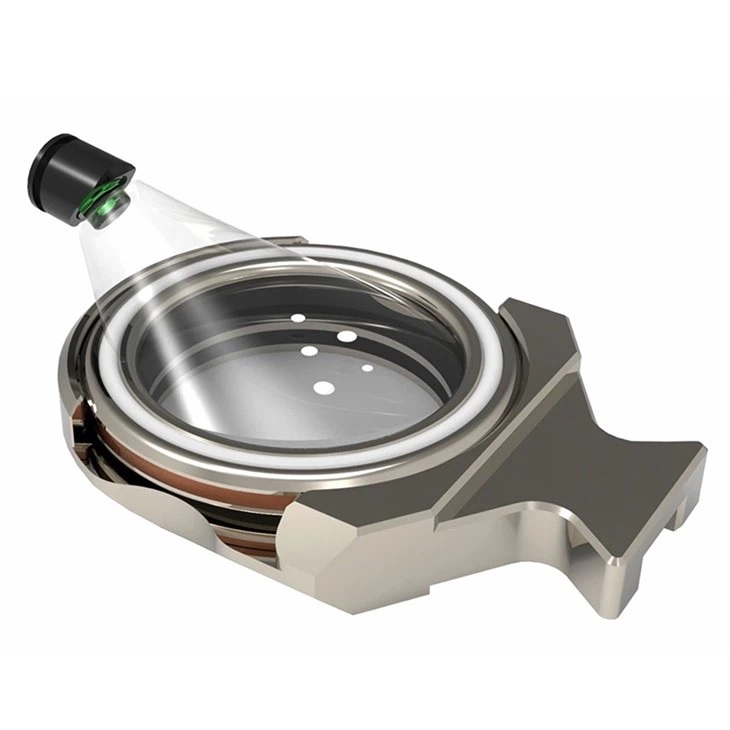

Protection Lens Contamination Temperature Monitoring

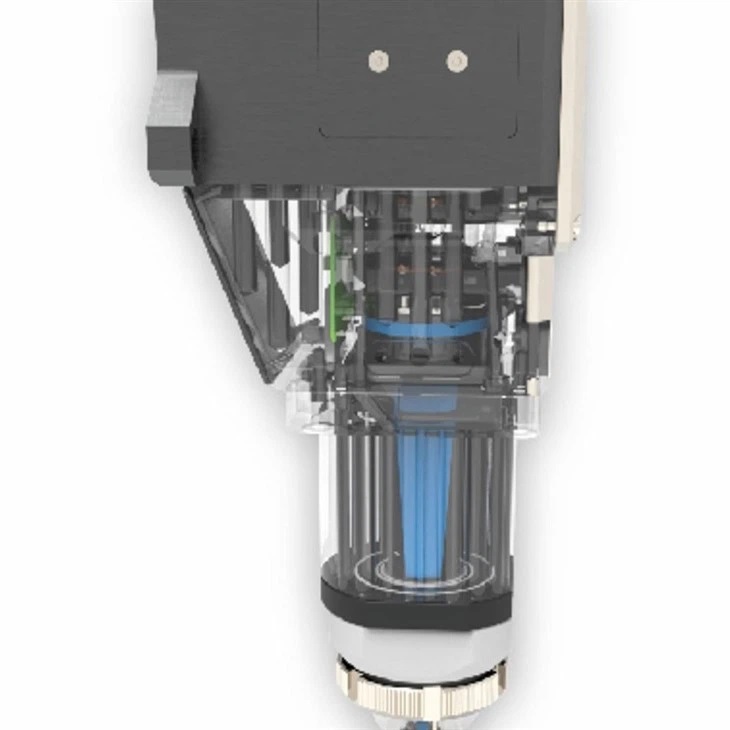

Real-time monitoring of gas flow output during cutting process
Products Parameters
| Model | BLT310 |
| Laser wavelength | 1030-1090nm |
| Laser power | ≤4kW |
| Optical fiber interface | QBH/EOC |
| Spot magnification | M=1.5/2.0 |
| Maximum focus adjustment range | ±50mm |
| Centering adjustment range | ±1.5mm |
| Focusing acceleration | 7.5m/s² Cutting gas interface: ø10, maximum 25bar (2.5Mpa) |
| Nozzle cooling gas interface | ø6, maximum 5bar (0.5Mpa) |
| Water cooling interface | ø8, maximum 5bar (0.5Mpa), minimum flow 2.0l/min |
| Working temperature | 5 ~ 55 ℃ |
| Storage temperature | -25～+55 ℃ |
| Size | 405x119mm |
| Weight | 4.5 kg |
Accessories specification distribution
Installation dimensions
