Production Introduction
1.Single axis wobble with adjustable line spot 0-5mm;
2.Wide welding seam, low porosity and excellent melting pool protection;3.Wire feeder as optional to expand application range;
4.Various tip assemblies in standard kit to fulfifill cutting, welding and weldseam cleaning. Assembly of remote cleaning is optional.
1.Multiple safety protection with auto beam offff function once the nozzle goes away from workpiece.
2.4-in-one laser control system (Cut/Weld/WeldSeam Clean/Remote Clean) and HMI panel are included.3.4-in-One Handheld Laser Processing Head-Cut/Weld/Weldeam Clean/Remote Clean
Production Characteristic
Laser welding
Laser cutting
Weld seam cleaning
Remote cleaning
Production Parameters
| Fiber Interface | QBH | Cover Glass | |
| Clear Aperture | 14 mm | Focusing Side(Middle/Bottom) | Φ20*3 mm |
| Collimator Focal Length | 60 mm | Assist Gas Flow | 15-25L/min |
| Focusing Focal Length | 150 mm | Weight | ~0.9 kg |
| Wobbling Width | 0-5mm(Weld) | Optional Tip Components | Cutting Assembly |
| 0-10mm(WeldSeam Clean) | Welding Assembly | ||
| 0-80mm(RemoteClean) | Cleaning Assembly |
Main Parts

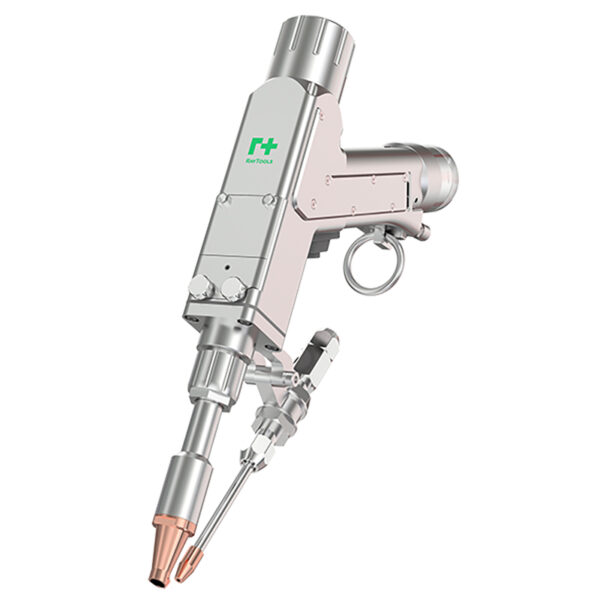

Welding gun
Controll box
Wire feeder machine
Software interface
Software main interface
Laser settings
Process parameters
Factory setting
